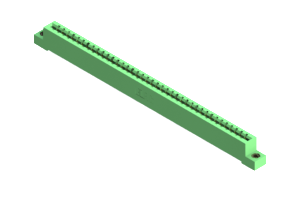

337-039-523-107
Card Edge Connector
The 337-039-523-107 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector features a single row design with 39 positions, perfect for seamless board-to-board connections. With a low amperage rating of 3A and durable copper alloy contacts, it ensures efficient power transmission. The housing is constructed from UL 94V-0 rated thermoplastic polyester, guaranteeing safety and longevity. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is ideal for a wide range of applications. Its .156-inch pitch and .2-inch row spacing, along with a straight mount orientation, offer easy and secure installation. Trust the 337-039-523-107 for superior performance in your projects.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-039-523-107 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 39 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-039-523-107 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
