| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-039-521-104 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 39 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 39 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-039-521-104 |
337-039-521-104
| ICC Number: | EDA337-039-521-104 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-039-521-104 |
| ECAD Model: | |
Specifications
Detailed Description

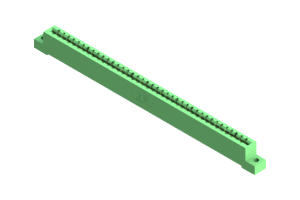

Introducing the 337-039-521-104, a high-performance Card Edge Connector designed for seamless board-to-board connections. With its vibrant Green color, this connector stands out while delivering reliable power with a 3A amperage. Crafted from UL 94V-0 Thermoplastic Polyester housing material and featuring Copper Alloy contacts, it ensures durability and efficient signal transmission. The single-row design with 39 positions and a pitch of .156 inches offers streamlined connectivity in compact spaces. With a low profile and straight mount orientation, it is ideal for various PCB applications. Operating flawlessly in a wide temperature range from -40 to 105°C, this connector is a dependable solution for your high-speed connectivity needs.
