| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-038-559-103 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 38 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Mounting Angle: | Right Angle |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 38 |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-038-559-103 |
337-038-559-103
| ICC Number: | EDA337-038-559-103 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-038-559-103 |
| ECAD Model: | |
Specifications
Detailed Description

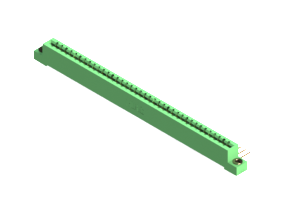

Introducing the 337-038-559-103 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Crafted from durable UL 94V-0 Thermoplastic Polyester housing material and featuring Copper Alloy contacts, this connector ensures reliable performance in demanding environments. With a single row design, a pitch of .156 inches, and 38 positions, it offers efficient connectivity with precise alignment. The right-angle mount orientation allows for space-saving installation, while its operating temperature range of -40 to 105°C guarantees suitability for a wide range of applications. Trust in the 337-038-559-103 for high-quality, high-reliability connectivity in your projects.
