| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-038-558-812 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 38 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 38 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-038-558-812 |
337-038-558-812
| ICC Number: | EDA337-038-558-812 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-038-558-812 |
| ECAD Model: | |
Specifications
Detailed Description

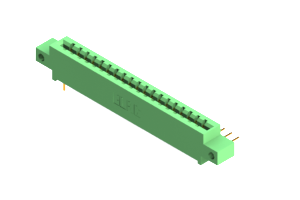

Introducing the 337-038-558-812 Card Edge Connector, a crucial component for your PCB connectivity needs. This green connector, featuring a durable housing made of UL 94V-0 Thermoplastic Polyester, is designed for high performance. With two rows of copper alloy contacts, each spaced at .156 inches with .2 inches between rows, it offers reliable and efficient connectivity. Boasting 38 positions in a right angle mount orientation, this connector is perfect for space-saving applications. Operating flawlessly in a wide temperature range from -40 to 105°C, it ensures reliability in harsh environments. Trust the 337-038-558-812 for seamless board-to-board connections in your electronic designs.
