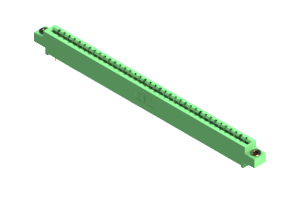

337-038-556-803
Card Edge Connector
The 337-038-556-803 Card Edge Connector, a durable and high-performance solution for your PCB connectivity needs. This two-row connector features 38 positions, with a pitch of .156 inches and row spacing of .2 inches, allowing for secure and efficient board-to-board connections. Constructed with a UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it offers reliable performance in a wide range of operating environments, from -40 to 105°C. Designed for straight mounting orientation, this green connector is not only functional but also visually distinct. With an amperage rating of 3A, it is suitable for various power and signal applications. Upgrade your system with the 337-038-556-803 and experience seamless connectivity like never before.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-038-556-803 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 38 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-038-556-803 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
