| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-038-542-268 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 38 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 38 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-038-542-268 |
337-038-542-268
| ICC Number: | EDA337-038-542-268 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-038-542-268 |
| ECAD Model: | |
Specifications
Detailed Description

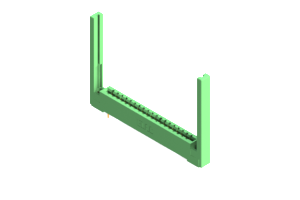

Introducing the 337-038-542-268 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This two-row connector boasts 38 positions, each crafted with precision from durable copper alloy for optimal conductivity. The housing, constructed from UL 94V-0 rated thermoplastic polyester, ensures enhanced safety and performance. With a low-profile design and a pitch of .156 inches, it offers seamless integration even in space-restricted applications. Operating flawlessly in a wide temperature range from -40 to 105°C, this connector is ideal for various industrial environments. Trust in the reliability and efficiency of the 337-038-542-268 for your connectivity needs.
