| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-038-540-608 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 38 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 38 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-038-540-608 |
337-038-540-608
| ICC Number: | EDA337-038-540-608 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-038-540-608 |
| ECAD Model: | |
Specifications
Detailed Description

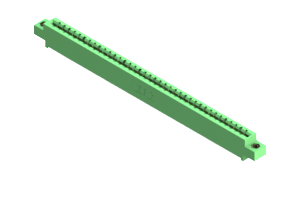

Introducing the 337-038-540-608 Card Edge Connector, a vital component for your PCB connectivity needs. This green connector boasts a single row design with 38 positions, allowing for seamless board-to-board connections. With a low amperage of 3A and durable copper alloy contacts, it ensures reliable power and signal transmission. The housing, made of UL 94V-0 rated thermoplastic polyester, guarantees high performance even in harsh environments. Featuring a .156" pitch and .2" row spacing, it offers precise and secure connections. Its straight mount orientation and wide operating temperature range of -40 to 105°C further enhance its versatility. Trust in the 337-038-540-608 for efficient and dependable card edge connectivity in your electronic applications.
