| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-038-523-208 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 38 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 38 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-038-523-208 |
337-038-523-208
| ICC Number: | EDA337-038-523-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-038-523-208 |
| ECAD Model: | |
Specifications
Detailed Description

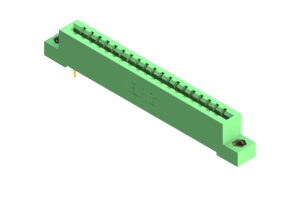

Introducing the 337-038-523-208, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. This two-row connector features 38 positions, with a pitch of .156 inches and row spacing of .2 inches, ensuring precise and secure alignment. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it guarantees reliable conductivity in demanding environments. Rated for 3A of current and operating flawlessly in temperatures ranging from -40 to 105°C, this green-colored connector is perfect for a wide range of applications. Its straight mount orientation offers easy installation, making it a must-have for any project requiring robust and efficient card edge connectivity.
