| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-037-559-102 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 37 |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 37 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-037-559-102 |
337-037-559-102
| ICC Number: | EDA337-037-559-102 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-037-559-102 |
| ECAD Model: | |
Specifications
Detailed Description

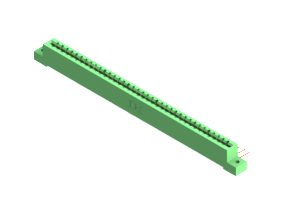

Introducing the 337-037-559-102 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector, constructed of UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, is designed for durability and longevity, even in harsh operating environments. With a current rating of 3A and 37 positions, it offers ample connectivity for your applications. The right-angle mount orientation and .156-inch pitch make it ideal for board-to-board connections, while its wide operating temperature range of -40 to 105°C ensures reliable performance in diverse conditions. Trust in the 337-037-559-102 for secure and efficient PCB connectivity in your projects.
