| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-037-544-158 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 37 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 37 |
| Termination Method: | Wire Wrap |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-037-544-158 |
337-037-544-158
| ICC Number: | EDA337-037-544-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-037-544-158 |
| ECAD Model: | |
Specifications
Detailed Description

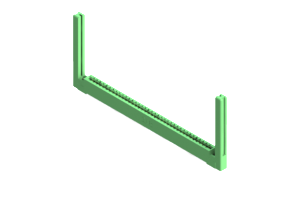

Introducing the 337-037-544-158 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector, featuring a single row and 37 positions, is designed for seamless board-to-board connections. With a pitch of .156 inches and row spacing of .2 inches, it offers precise and secure contact. Crafted from UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector ensures reliable performance even in harsh environments. Rated for 3A, it guarantees efficient power transmission. Its straight mount orientation and wide operating temperature range of -40 to 105°C make it versatile for various applications. Trust the 337-037-544-158 for durable and efficient card edge connectivity.
