| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-037-500-108 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 37 |
| Number of Rows: | 1 |
| Termination Method: | Wire Hole |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Diallyl Phthalate |
| Row Spacing: | .2 in |
| Number of Positions: | 37 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-037-500-108 |
337-037-500-108
| ICC Number: | EDA337-037-500-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-037-500-108 |
| ECAD Model: | |
Specifications
Detailed Description

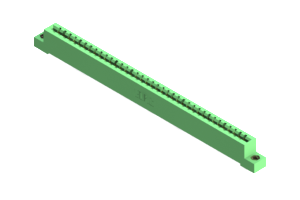

Introducing the 337-037-500-108 Card Edge Connector, a crucial component for seamless board-to-board PCB connectivity. This green connector, featuring a single row of 37 positions, is meticulously crafted for high performance. With a low amperage of 3A and constructed from UL 94V-0 Thermoplastic Polyester housing material, it ensures both efficiency and safety in operation. The contact material, made of durable Copper Alloy, guarantees reliable conductivity. Designed for straight mount orientation, this connector offers easy installation. With an operating temperature range of -40 to 105 °C, it is suitable for a variety of environments. Trust in the quality and precision of the 337-037-500-108 for your connectivity needs.
