| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-036-559-608 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 36 |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 36 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-036-559-608 |
337-036-559-608
| ICC Number: | EDA337-036-559-608 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-036-559-608 |
| ECAD Model: | |
Specifications
Detailed Description

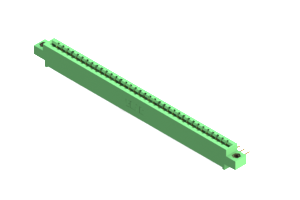

Introducing the 337-036-559-608, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. With a vibrant Green color and a sleek Right Angle mount orientation, this connector offers both functionality and style. Engineered for durability, it features a UL 94V-0 Thermoplastic Polyester housing material and Copper Alloy contact material, ensuring reliable performance in a wide range of operating environments. With 36 positions and a pitch of .156 inches, it provides ample connectivity for your electronic devices. Rated for 3A and with an operating temperature range of -40 to 105°C, this connector is suitable for a variety of applications. Upgrade your PCB connections with the 337-036-559-608.
