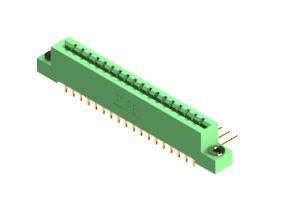

337-036-558-203
Card Edge Connector
The 337-036-558-203 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 36 positions, with a pitch of .156 inches and row spacing of .2 inches, ensuring efficient and secure board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it offers excellent longevity and conductivity, even in harsh operating environments. Rated for 3A of current and operating temperatures ranging from -40 to 105°C, this connector is suitable for a wide range of applications. Its right-angle mount orientation makes it easy to integrate into your PCB layout. Trust in the 337-036-558-203 for dependable performance in your designs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-036-558-203 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 36 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-036-558-203 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
