| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-036-541-268 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 36 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 36 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-036-541-268 |
337-036-541-268
| ICC Number: | EDA337-036-541-268 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-036-541-268 |
| ECAD Model: | |
Specifications
Detailed Description

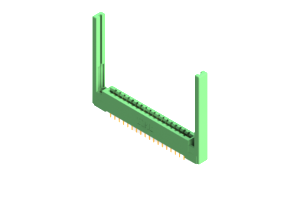

Introducing the 337-036-541-268 Card Edge Connector, a crucial component for seamless board-to-board PCB connections in your electronic devices. This two-row connector boasts 36 positions, allowing for efficient data and power transmission. Crafted with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable performance even in harsh environments. The green color coding and .156-inch pitch make for easy identification and installation. With a current rating of 3A and an operating temperature range of -40 to 105°C, this connector guarantees optimal functionality. Trust in the 337-036-541-268 for high-quality and secure card edge connections in your electronic designs.
