| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-036-521-604 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 36 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 36 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-036-521-604 |
337-036-521-604
| ICC Number: | EDA337-036-521-604 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-036-521-604 |
| ECAD Model: | |
Specifications
Detailed Description

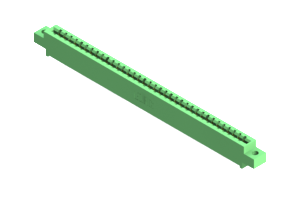

Introducing the 337-036-521-604 Card Edge Connector, a high-performance solution for seamless board-to-board PCB connectivity. Designed with precision and durability in mind, this connector features 36 positions in a single row with a pitch of .156 inches, ensuring optimal signal transmission. Crafted from UL 94V-0 Thermoplastic Polyester housing and copper alloy contact material, it guarantees reliability in harsh operating conditions ranging from -40 to 105°C. With a current rating of 3A, this green-colored connector offers efficient power delivery. Its straight mount orientation and .2-inch row spacing make it easy to integrate, ideal for various electronic applications. Upgrade your connectivity with this top-of-the-line card edge connector.
