337-035-541-104

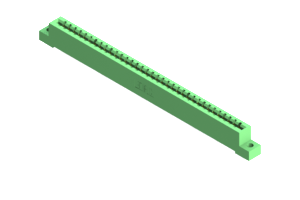

Card Edge Connector
The 337-035-541-104, a high-performance Card Edge Connector designed for seamless board-to-board connections. This connector features 35 positions in a single row, with a pitch of .156 inches, allowing for efficient data transfer. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable connectivity in harsh environments. With a low operating temperature of -40°C and a maximum of 105°C, it is suitable for a wide range of applications. Its straight mount orientation and green color make it easy to install and identify. Rated for 3A, this connector is ideal for high-speed and high-density PCB designs. Trust the 337-035-541-104 for your connectivity needs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-035-541-104 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 35 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-035-541-104 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
