| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-035-523-658 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 35 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 35 |
| Termination Method: | Solder |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-035-523-658 |
337-035-523-658
| ICC Number: | EDA337-035-523-658 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-035-523-658 |
| ECAD Model: | |
Specifications
Detailed Description

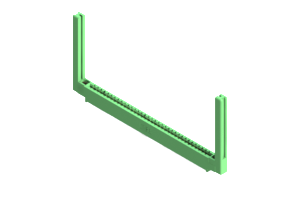

Introducing the 337-035-523-658 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector, featuring a single row design with 35 positions, is crafted from durable UL 94V-0 Thermoplastic Polyester housing material and copper alloy contact material, ensuring longevity and robust performance. With a low amperage of 3A and a pitch of .156 inches, it is ideal for various electronic applications. The straight mount orientation and wide operating temperature range of -40 to 105 °C make it versatile for use in different environments. Trust in the quality and durability of this Card Edge Connector for seamless board-to-board connections in your projects.
