| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-035-520-112 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 35 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 35 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-035-520-112 |
337-035-520-112
| ICC Number: | EDA337-035-520-112 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-035-520-112 |
| ECAD Model: | |
Specifications
Detailed Description

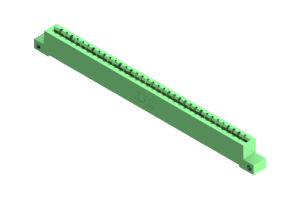

Introducing the 337-035-520-112 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector, constructed with UL 94V-0 Thermoplastic Polyester housing material, is designed for durability and safety. With a single row layout and 35 positions, it offers ample connectivity options. The copper alloy contact material ensures optimal conductivity, while the .156-inch pitch and .2-inch row spacing allow for easy integration. Rated for an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of environments. Whether for commercial or industrial applications, the 337-035-520-112 is the perfect choice for seamless board-to-board connectivity.
