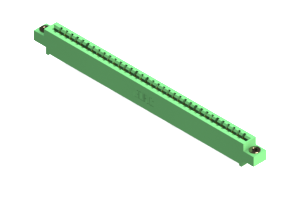

337-035-500-603
Card Edge Connector
The 337-035-500-603 Card Edge Connector, a high-performance and reliable solution for your PCB connectivity needs. This green connector features a single row design with 35 positions, allowing for seamless board-to-board connections. With a low amperage rating of 3A and constructed from UL 94V-0 Thermoplastic Polyester housing material, it ensures safe and efficient operation even in demanding environments. The contact material is made of durable Copper Alloy, guaranteeing excellent conductivity and longevity. With a pitch of .156 inches and row spacing of .2 inches, it offers precise and secure connections. Its straight mount orientation and wide operating temperature range of -40 to 105°C make it suitable for a variety of applications. Trust in the 337-035-500-603 for high-quality and high-reliability card edge connectivity.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-035-500-603 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 35 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-035-500-603 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
