| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-034-544-612 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 34 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 34 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-034-544-612 |
337-034-544-612
| ICC Number: | EDA337-034-544-612 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-034-544-612 |
| ECAD Model: | |
Specifications
Detailed Description

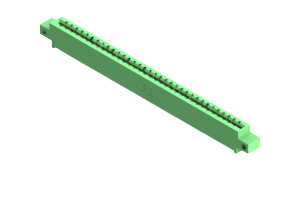

Introducing the 337-034-544-612 Card Edge Connector, a crucial component for seamless board-to-board PCB connections. This green connector, featuring a single row of 34 positions, is designed for high-speed data transmission with a pitch of .156 inches. Crafted from durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it guarantees reliable performance even in harsh environments. With an operating temperature range of -40 to 105 °C and a current rating of 3A, this connector is suitable for a wide range of applications. Its straight mount orientation and .2-inch row spacing make it easy to integrate into your PCB layout. Trust in the quality and durability of this connector for your next project.
