| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-034-544-103 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 34 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 34 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-034-544-103 |
337-034-544-103
| ICC Number: | EDA337-034-544-103 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-034-544-103 |
| ECAD Model: | |
Specifications
Detailed Description

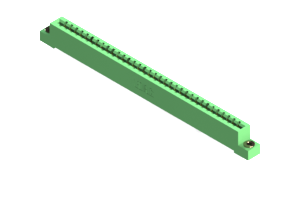

Introducing the 337-034-544-103 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Engineered for high performance, this connector features a single row design with 34 positions, ensuring efficient data transmission. The housing is constructed from UL 94V-0 rated thermoplastic polyester, guaranteeing durability and safety. Each contact is made of robust copper alloy, with a pitch of .156 inches and row spacing of .2 inches for precise alignment. Rated for an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of applications. Its sleek green color adds a touch of visual appeal to any PCB setup. Trust in the reliability and quality of the 337-034-544-103 for all your connectivity needs.
