337-034-524-678
Card Edge Connector

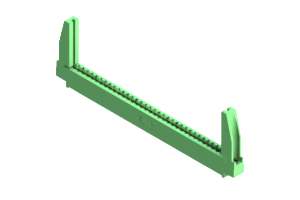

The 337-034-524-678 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. With a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector is not only durable but also environmentally friendly. Featuring a single row design and 34 positions, it allows for seamless board-to-board connections with a pitch of .156 inches. Crafted with copper alloy contacts, it ensures excellent conductivity and signal integrity. Its straight mount orientation and wide operating temperature range of -40 to 105 °C make it versatile for various applications. Trust in the 337-034-524-678 for efficient and secure connectivity in your projects.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-034-524-678 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 34 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-034-524-678 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
