| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-034-521-603 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 34 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 34 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-034-521-603 |
337-034-521-603
| ICC Number: | EDA337-034-521-603 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-034-521-603 |
| ECAD Model: | |
Specifications
Detailed Description

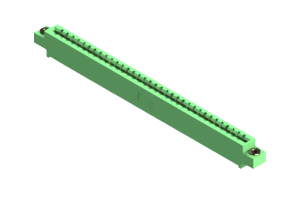

Introducing the 337-034-521-603 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector, featuring a single row design with 34 positions, is built to handle up to 3 A of power with ease. Constructed from UL 94V-0 Thermoplastic Polyester housing and durable copper alloy contacts, it ensures long-lasting durability even in harsh operating conditions ranging from -40 to 105 °C. With a pitch of .156 in and row spacing of .2 in, it offers precise and secure connections for your circuit boards. Whether for industrial or commercial applications, this connector guarantees efficient and dependable performance. Upgrade your board-to-board connectivity with the 337-034-521-603 Card Edge Connector.
