| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-034-520-101 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 34 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 34 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-034-520-101 |
337-034-520-101
| ICC Number: | EDA337-034-520-101 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-034-520-101 |
| ECAD Model: | |
Specifications
Detailed Description

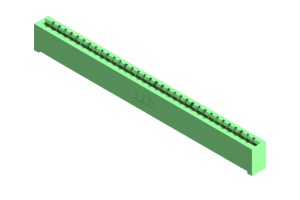

Introducing the 337-034-520-101 Card Edge Connector, a high-performance solution for your PCB connectivity needs. With its sleek green design and durable UL 94V-0 Thermoplastic Polyester housing, this connector ensures reliable performance in any application. Featuring a single row layout and 34 copper alloy contacts, it offers seamless board to board connectivity with a pitch of .156 inches. The straight mount orientation and wide operating temperature range of -40 to 105°C make it versatile for a variety of environments. Trust in the quality and durability of the 337-034-520-101 for your next project.
