| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-033-541-608 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 33 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 33 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-033-541-608 |
337-033-541-608
| ICC Number: | EDA337-033-541-608 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-033-541-608 |
| ECAD Model: | |
Specifications
Detailed Description

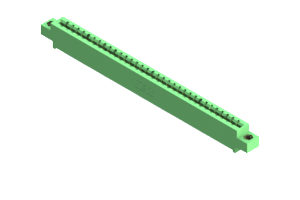

Introducing the 337-033-541-608 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This single-row connector features 33 positions, with a durable UL 94V-0 Thermoplastic Polyester housing for enhanced safety. Crafted with precision, it boasts copper alloy contacts for reliable conductivity, rated for up to 3A of current. The .156-inch pitch and .2-inch row spacing ensure seamless integration, while its straight mount orientation offers versatility in installation. Operating flawlessly in temperatures ranging from -40 to 105°C, this green-colored connector is ideal for a wide range of applications in various industries. Trust in the 337-033-541-608 for efficient and dependable board-to-board connectivity.
