| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-033-540-602 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 33 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 33 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-033-540-602 |
337-033-540-602
| ICC Number: | EDA337-033-540-602 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-033-540-602 |
| ECAD Model: | |
Specifications
Detailed Description

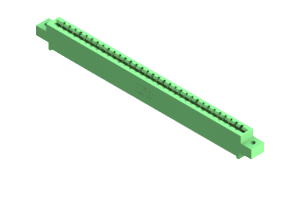

Introducing the 337-033-540-602, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures both durability and safety. Boasting a single row layout with 33 positions, it offers ample connectivity options with a pitch of .156 inches and row spacing of .2 inches. Crafted with precision, the contacts are made of robust Copper Alloy, capable of handling up to 3A of current. Ideal for a wide range of industries, this connector operates flawlessly in temperatures ranging from -40 to 105°C. Trust in the reliability and quality of the 337-033-540-602 for all your board-to-board PCB connection needs.
