| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-033-500-168 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 33 |
| Number of Rows: | 1 |
| Termination Method: | Wire Hole |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Diallyl Phthalate |
| Row Spacing: | .2 in |
| Number of Positions: | 33 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-033-500-168 |
337-033-500-168
| ICC Number: | EDA337-033-500-168 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-033-500-168 |
| ECAD Model: | |
Specifications
Detailed Description

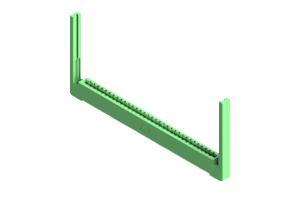

Introducing the 337-033-500-168 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector features a single row design with 33 positions, allowing for seamless board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it offers excellent longevity and conductivity in a wide operating temperature range from -40 to 105 °C. With a low pitch of .156 inches and row spacing of .2 inches, this connector ensures efficient signal transmission in compact spaces. Trust in the 337-033-500-168 for your critical applications, whether in consumer electronics or industrial systems.
