| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-032-544-602 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 32 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 32 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-032-544-602 |
337-032-544-602
| ICC Number: | EDA337-032-544-602 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-032-544-602 |
| ECAD Model: | |
Specifications
Detailed Description

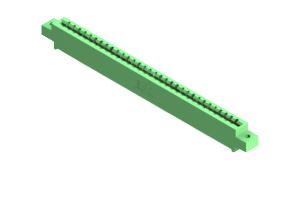

Introducing the 337-032-544-602 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector features a single row design with 32 positions, allowing for seamless board-to-board connections. Constructed with durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures longevity and stability in operation. With a low 3A amperage and a pitch of .156 inches, it is suitable for various electronic applications. Its straight mount orientation and wide operating temperature range of -40 to 105°C offer versatility in installation. Trust in the 337-032-544-602 for efficient and dependable card edge connectivity.
