| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-032-541-158 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 32 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 32 |
| Termination Method: | Wire Wrap |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-032-541-158 |
337-032-541-158
| ICC Number: | EDA337-032-541-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-032-541-158 |
| ECAD Model: | |
Specifications
Detailed Description

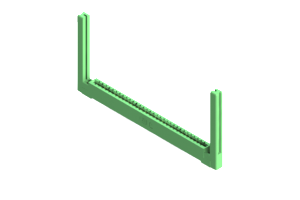

Introducing the 337-032-541-158 Card Edge Connector, an essential component for your PCB connectivity needs. This green connector boasts a single row design with 32 positions, featuring durable copper alloy contacts for reliable performance. With a low amperage rating of 3A and a pitch of .156 inches, it is ideal for various electronic applications. The housing is constructed from UL 94V-0 rated thermoplastic polyester, ensuring safety and durability. Designed for straight mount orientation, this connector operates flawlessly in a wide temperature range from -40 to 105°C. Trust in the 337-032-541-158 for efficient board-to-board connections in your projects.
