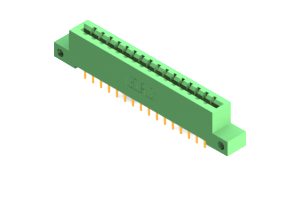

337-032-540-212
Card Edge Connector
The 337-032-540-212, a high-performance Card Edge Connector designed for seamless board-to-board connections. This two-row connector features 32 positions, allowing for efficient data transfer. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable conductivity in demanding environments. With a pitch of .156 inches and row spacing of .2 inches, it offers precise and secure connections. Rated for an operating temperature range of -40 to 105°C, it is suitable for a wide range of applications. The green color coding makes it easy to identify, while the straight mount orientation simplifies installation. Whether for consumer electronics or industrial machinery, this connector guarantees high performance and durability. Elevate your connectivity with the 337-032-540-212 Card Edge Connector.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-032-540-212 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 32 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-032-540-212 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
