| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-032-540-101 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 32 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 32 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-032-540-101 |
337-032-540-101
| ICC Number: | EDA337-032-540-101 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-032-540-101 |
| ECAD Model: | |
Specifications
Detailed Description

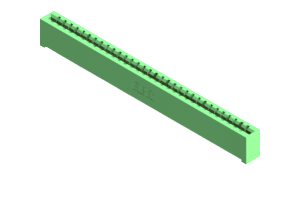

Introducing the 337-032-540-101, a high-performance Card Edge Connector designed for seamless board-to-board connections. This connector, featuring a vibrant Green color for easy identification, boasts a robust construction with a housing made of UL 94V-0 Thermoplastic Polyester and durable Copper Alloy contacts, ensuring reliable power and signal transmission. With a low pitch of .156 inches and 32 positions in a single row, it offers efficient connectivity in compact spaces. The straight mount orientation and wide operating temperature range of -40 to 105 °C make it versatile for various applications. Trust in the quality and performance of this connector for your next project.
