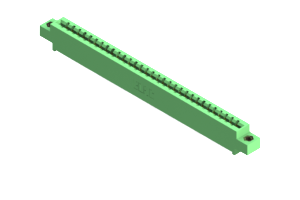

337-031-542-607
Card Edge Connector
The 337-031-542-607 Card Edge Connector, a high-performance solution for your PCB connectivity needs. Designed with precision and durability in mind, this connector features a single row layout with 31 positions, allowing for seamless board-to-board connections. The housing is constructed from UL 94V-0 rated thermoplastic polyester, ensuring reliable performance even in harsh operating environments ranging from -40 to 105 °C. With a contact material of copper alloy and a pitch of .156 inches, this connector offers efficient and secure transmission for your electronic components. Its straight mount orientation and green color make it easy to integrate into your design. Trust in the 337-031-542-607 for exceptional quality and performance in your applications.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-031-542-607 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 31 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-031-542-607 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
