| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-031-540-608 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 31 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 31 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-031-540-608 |
337-031-540-608
| ICC Number: | EDA337-031-540-608 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-031-540-608 |
| ECAD Model: | |
Specifications
Detailed Description

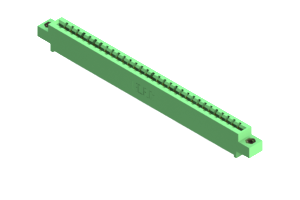

337-031-540-608. Introducing the Card Edge Connector, a vital component for seamless board-to-board PCB connections. Crafted from durable UL 94V-0 Thermoplastic Polyester, this connector ensures reliable performance even in harsh operating conditions, with an impressive amperage rating of 3A. Featuring a single row design with 31 positions and a pitch of .156 inches, it offers efficient signal transmission. The copper alloy contact material guarantees excellent conductivity, while the green housing color adds a touch of visual appeal. With a straight mount orientation and a wide operating temperature range of -40 to 105°C, this connector is suitable for a variety of applications. Upgrade your PCB assembly with the 337-031-540-608 Card Edge Connector.
