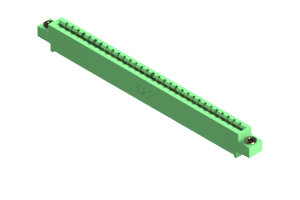

337-031-540-603
Card Edge Connector
The 337-031-540-603 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This green connector boasts a single row design with 31 positions, each featuring durable copper alloy contacts for reliable conductivity. With a low pitch of .156 inches and row spacing of .2 inches, it ensures efficient signal transmission in tight spaces. The housing, constructed from UL 94V-0 rated thermoplastic polyester, guarantees superior safety and performance, even in harsh operating conditions ranging from -40 to 105 °C. Designed for straight mount orientation, this connector offers easy installation and secure connectivity. Whether for industrial or commercial applications, trust in the 337-031-540-603 for high-quality and dependable card edge connections.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-031-540-603 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 31 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-031-540-603 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
