337-030-558-812

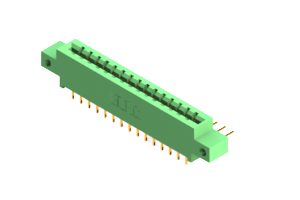

Card Edge Connector
The 337-030-558-812 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This two-row connector features 30 positions, each crafted with durable copper alloy contacts for reliable conductivity. The UL 94V-0 Thermoplastic Polyester housing ensures robust performance, even in harsh operating conditions ranging from -40 to 105 °C. With a low-profile right-angle mount orientation and a pitch of .156 inches, this connector offers space-saving versatility for your design needs. Trust in the 337-030-558-812 for high-quality, high-reliability connectivity in your electronic applications.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-030-558-812 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 30 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-030-558-812 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
