| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-030-544-212 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 30 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 30 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-030-544-212 |
337-030-544-212
| ICC Number: | EDA337-030-544-212 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-030-544-212 |
| ECAD Model: | |
Specifications
Detailed Description

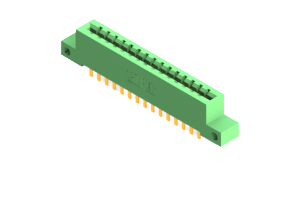

Introducing the 337-030-544-212 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 30 positions, with a pitch of .156 inches and row spacing of .2 inches, allowing for seamless board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures excellent conductivity and longevity. Rated for 3A and operating in a wide temperature range of -40 to 105°C, this connector is suitable for various applications. Its straight mount orientation and green color make it easy to install and identify on your board. Trust in the quality and performance of this Card Edge Connector for your next project.
