| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-030-540-603 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 30 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 30 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-030-540-603 |
337-030-540-603
| ICC Number: | EDA337-030-540-603 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-030-540-603 |
| ECAD Model: | |
Specifications
Detailed Description

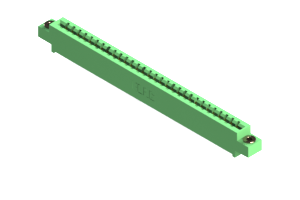

Introducing the 337-030-540-603 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Crafted with precision and durability in mind, this connector features a single row design with 30 positions for optimal connectivity. The housing is made of UL 94V-0 Thermoplastic Polyester, ensuring safety and reliability in any application. With a contact material of Copper Alloy and a pitch of .156 inches, this connector guarantees efficient signal transmission. Its green color and straight mount orientation make it easy to integrate into any system. Operating flawlessly in temperatures ranging from -40 to 105 °C, the 337-030-540-603 is a must-have for your electronic projects.
