| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-030-524-212 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 30 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 30 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-030-524-212 |
337-030-524-212
| ICC Number: | EDA337-030-524-212 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-030-524-212 |
| ECAD Model: | |
Specifications
Detailed Description

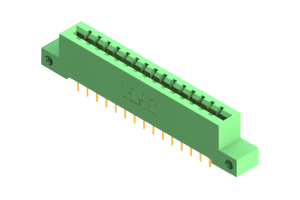

Introducing the 337-030-524-212 Card Edge Connector, a vital component for seamless board-to-board PCB connections in your electronic devices. This two-row connector features 30 positions, allowing for efficient data and power transmission. Constructed with durable UL 94V-0 Thermoplastic Polyester housing and high-performance Copper Alloy contacts, it ensures reliable connectivity even in harsh environments. With a low pitch of .156 inches and a compact straight mount orientation, it offers space-saving solutions for your design needs. Operating flawlessly in a wide temperature range from -40 to 105°C, this green connector guarantees long-lasting performance. Upgrade your PCB connectivity with the 337-030-524-212 for optimal efficiency and durability.
