337-030-521-808

ICC Number:EDA337-030-521-808
Manufacturer:EDAC
Manufacturer Number:337-030-521-808
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Manufacturer:EDAC
Manufacturer Part Number:EDAC 337-030-521-808
Gender:Female
Number of Contacts:30
Number of Rows:2
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Gold, Nickel, Tin
Pitch:0.156 in
Insulation Material:Thermoplastic Polyester
Current Rating:3 A
Voltage Rating:1800 VAC
Card Thickness:0.062 in
Operating Temperature:-40 to 105 °C
Mounting Type:Screw Mount
SKU:EDA337-030-521-808

Detailed Description

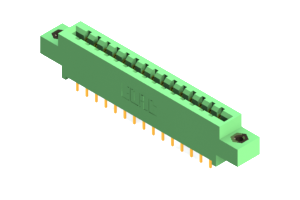

Introducing the 337-030-521-808 Card Edge Connector, a vital component for seamless PCB connections. This green connector, featuring UL 94V-0 Thermoplastic Polyester housing, ensures reliable performance even in harsh environments with its operating temperature range of -40 to 105 °C. With two rows and 30 positions, it offers ample connectivity options with a pitch of .156 inches and row spacing of .2 inches. Crafted from durable copper alloy, this connector guarantees efficient power transmission at 3A. Its straight mount orientation makes installation a breeze. Ideal for board-to-board PCB connections, this high-quality connector, though not hi-rel rated, is a cost-effective solution for various electronic applications. Trust the 337-030-521-808 for secure and efficient connectivity in your projects.
