| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-030-521-604 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 30 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 30 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-030-521-604 |
337-030-521-604
| ICC Number: | EDA337-030-521-604 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-030-521-604 |
| ECAD Model: | |
Specifications
Detailed Description

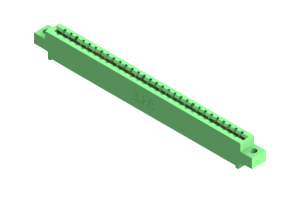

Introducing the 337-030-521-604 Card Edge Connector, a crucial component for seamless board-to-board PCB connections. This green connector, featuring a single row of 30 positions with a pitch of .156 inches, ensures efficient power and signal transmission with an amperage rating of 3A. Crafted from UL 94V-0 Thermoplastic Polyester housing and durable copper alloy contacts, it guarantees reliable performance even in harsh operating conditions ranging from -40 to 105°C. Designed for straight mount orientation, this connector offers easy installation for your PCB assembly needs. Trust in the high-quality construction and precision engineering of the 337-030-521-604 for your connectivity requirements.
