| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-030-520-212 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 30 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 30 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-030-520-212 |
337-030-520-212
| ICC Number: | EDA337-030-520-212 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-030-520-212 |
| ECAD Model: | |
Specifications
Detailed Description

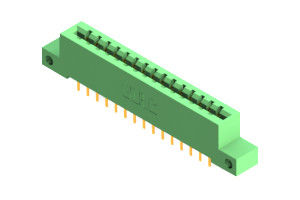

Introducing the 337-030-520-212, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring a vibrant Green color, this connector is not only functional but also visually appealing. With an amperage rating of 3A, it ensures reliable power transmission in various applications. The housing is constructed from UL 94V-0 Thermoplastic Polyester, guaranteeing durability and safety. Boasting two rows of Copper Alloy contacts with a pitch of .156 inches, it accommodates 30 positions for efficient connectivity. Its straight mount orientation and wide operating temperature range of -40 to 105°C make it versatile for use in different environments. Trust in the 337-030-520-212 for your connectivity needs.
