| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-030-500-808 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 30 |
| Number of Rows: | 2 |
| Termination Method: | Wire Hole |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Diallyl Phthalate |
| Row Spacing: | .2 in |
| Number of Positions: | 30 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-030-500-808 |
337-030-500-808
| ICC Number: | EDA337-030-500-808 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-030-500-808 |
| ECAD Model: | |
Specifications
Detailed Description

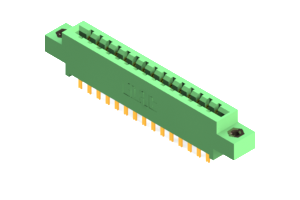

Introducing the 337-030-500-808 Card Edge Connector in a vibrant green color, designed for high-performance applications. With a current rating of 3A and constructed from UL 94V-0 rated thermoplastic polyester housing, this connector ensures reliable and safe operation. Featuring two rows of 30 positions each, made of durable copper alloy for excellent conductivity. The .156" pitch and .2" row spacing allow for secure board-to-board connections. With a straight mount orientation and operating temperature range of -40 to 105°C, this connector is ideal for demanding environments. Perfect for use in various industries, the 337-030-500-808 is a versatile and dependable solution for your connectivity needs.
