| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-029-559-602 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 29 |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 29 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-029-559-602 |
337-029-559-602
| ICC Number: | EDA337-029-559-602 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-029-559-602 |
| ECAD Model: | |
Specifications
Detailed Description

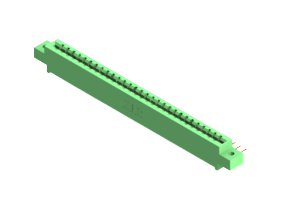

Introducing the 337-029-559-602 Card Edge Connector, a vital component for seamless board-to-board PCB connections in electronic devices. This green connector, constructed with high-quality UL 94V-0 Thermoplastic Polyester housing and durable copper alloy contacts, ensures reliable performance in demanding environments. With a single row design, 29 positions, and a pitch of .156 inches, it offers precise and efficient connectivity. The right-angle mount orientation allows for convenient installation, while its wide operating temperature range of -40 to 105 °C guarantees suitability for various applications. Trust in the 337-029-559-602 for robust and dependable connections in your electronic designs.
