| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-029-558-602 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 29 |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 29 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-029-558-602 |
337-029-558-602
| ICC Number: | EDA337-029-558-602 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-029-558-602 |
| ECAD Model: | |
Specifications
Detailed Description

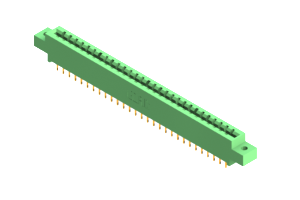

Introducing the 337-029-558-602, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic systems. With its sleek green housing crafted from UL 94V-0 Thermoplastic Polyester, this connector ensures durability and reliability in any application. Boasting a single row design and 29 copper alloy contact positions, it offers ample connectivity options with a pitch of .156 inches. The right-angle mount orientation allows for easy installation, while its wide operating temperature range of -40 to 105 °C guarantees optimal performance even in harsh environments. Trust in the 337-029-558-602 for secure and efficient PCB connections in your projects.
