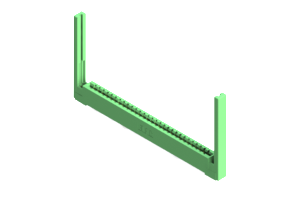

337-029-500-168
Card Edge Connector
The 337-029-500-168 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Crafted with precision and durability in mind, this connector boasts a single row design with 29 positions for efficient data transmission. The housing, made of UL 94V-0 Thermoplastic Polyester, ensures safety and reliability in all operating conditions, from -40 to 105 °C. Each contact is constructed from high-quality Copper Alloy, guaranteeing optimal conductivity. With a pitch of .156 inches and row spacing of .2 inches, this connector offers precise alignment for seamless installation. Rated for 3A, it is suitable for a wide range of applications. The green color coding allows for easy identification, while the straight mount orientation accommodates various PCB layouts. Trust in the 337-029-500-168 for high-performance connectivity in your electronic devices.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-029-500-168 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 29 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-029-500-168 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
