| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-028-559-807 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 28 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 28 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-028-559-807 |
337-028-559-807
| ICC Number: | EDA337-028-559-807 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-028-559-807 |
| ECAD Model: | |
Specifications
Detailed Description

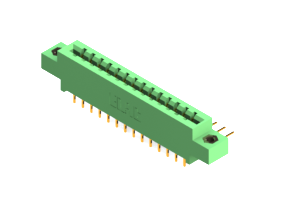

Introducing the 337-028-559-807 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Boasting a sleek green design, this connector features two rows and 28 positions for enhanced functionality. With a low amperage rating of 3A, it is perfect for delicate electronic applications. Crafted from durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector ensures reliable performance even in harsh operating conditions ranging from -40 to 105 °C. Its right-angle mount orientation and .156-inch pitch offer easy and secure installation. Trust in the 337-028-559-807 for efficient and durable connectivity in your electronic devices.
