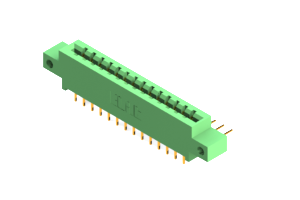

337-028-558-812
Card Edge Connector
The 337-028-558-812 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 28 positions, with a pitch of .156 inches and row spacing of .2 inches, ensuring efficient and secure board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector offers reliable performance in even the most demanding environments. With a current rating of 3A and an operating temperature range of -40 to 105°C, it is suitable for a wide range of applications. The right-angle mount orientation allows for easy installation, making it ideal for space-constrained designs. Trust in the 337-028-558-812 for seamless and dependable connectivity in your electronic systems.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-028-558-812 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 28 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-028-558-812 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
