| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-028-544-208 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 28 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Screw Mount |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 28 |
| Termination Method: | Wire Wrap |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-028-544-208 |
337-028-544-208
| ICC Number: | EDA337-028-544-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-028-544-208 |
| ECAD Model: | |
Specifications
Detailed Description

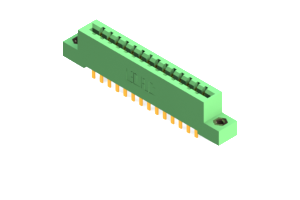

Introducing the 337-028-544-208 Card Edge Connector, a vital component for your PCB connectivity needs. This green connector features two rows of 28 positions, allowing for seamless board-to-board connections with a pitch of .156 inches. Constructed with high-quality UL 94V-0 Thermoplastic Polyester housing and durable copper alloy contacts, it ensures reliable performance even in harsh environments with an operating temperature range of -40 to 105 °C. With a low amperage of 3A, this straight mount connector is perfect for various applications in the electronics industry. Trust in the 337-028-544-208 for efficient and secure connectivity in your projects.
