| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-028-542-108 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 28 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 28 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-028-542-108 |
337-028-542-108
| ICC Number: | EDA337-028-542-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-028-542-108 |
| ECAD Model: | |
Specifications
Detailed Description

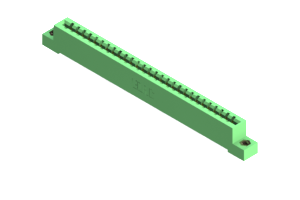

Introducing the 337-028-542-108 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector boasts a durable housing made of UL 94V-0 Thermoplastic Polyester, ensuring reliable performance in any application. With a single row design and 28 positions, it offers ample connectivity options. The copper alloy contact material and a pitch of .156 inches guarantee secure and efficient data transmission. Designed for straight mount orientation, this connector operates flawlessly in a wide temperature range from -40 to 105 °C. Trust in the 337-028-542-108 for dependable board-to-board connections in your electronic systems.
