| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-028-521-858 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 28 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 28 |
| Termination Method: | Solder |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-028-521-858 |
337-028-521-858
| ICC Number: | EDA337-028-521-858 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-028-521-858 |
| ECAD Model: | |
Specifications
Detailed Description

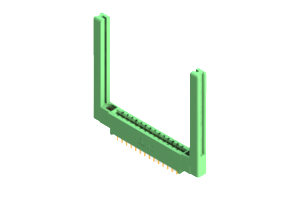

Introducing the 337-028-521-858 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This two-row connector boasts 28 positions, ensuring ample connectivity for your devices. Crafted with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it guarantees reliable performance even in harsh operating conditions ranging from -40 to 105°C. With a pitch of .156 inches and row spacing of .2 inches, precise and secure connections are effortless. Rated for 3A, this green connector is suitable for a wide range of applications in various industries. Upgrade your PCB assembly with this high-quality, RoHS-compliant Card Edge Connector.
